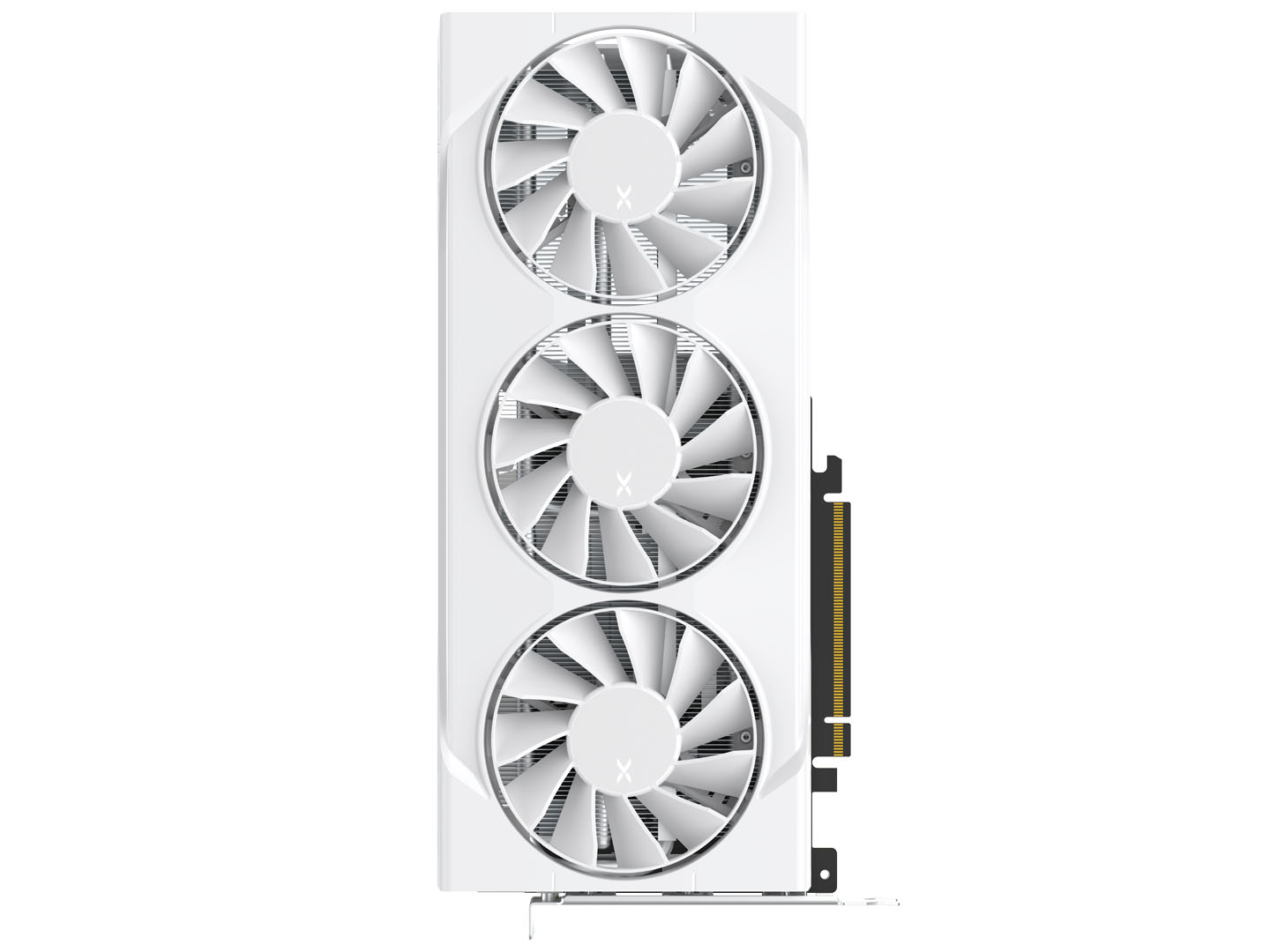

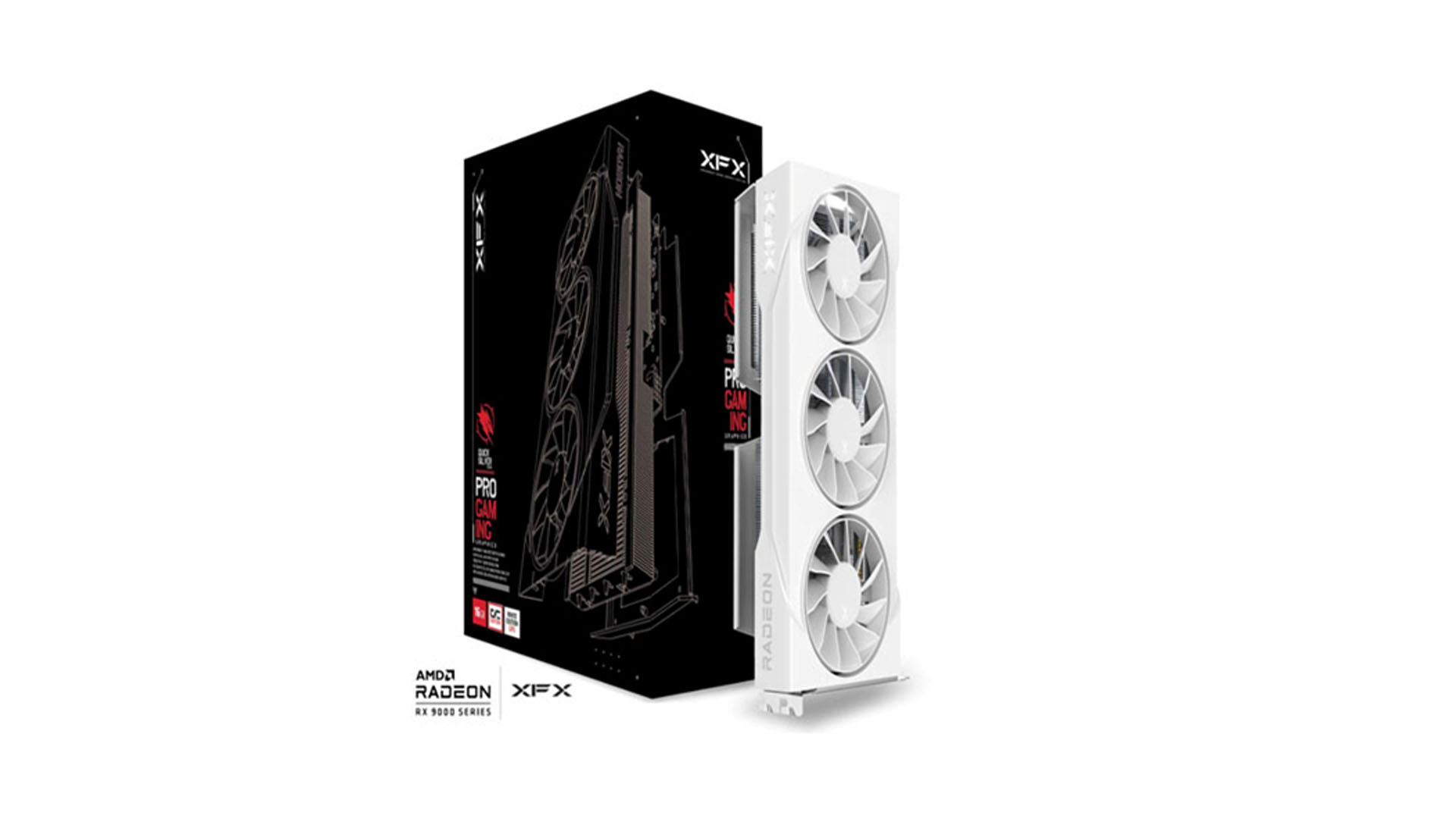

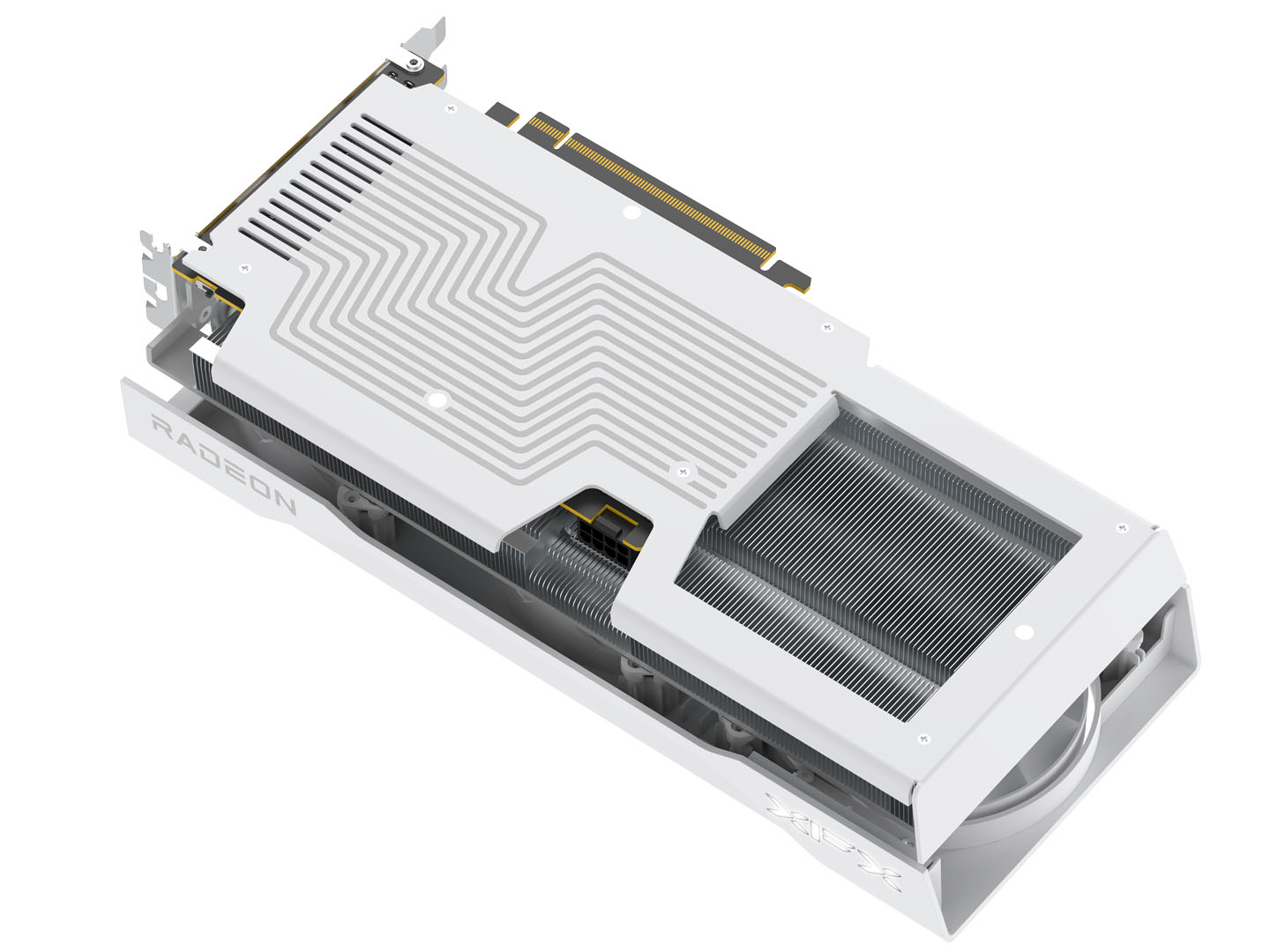

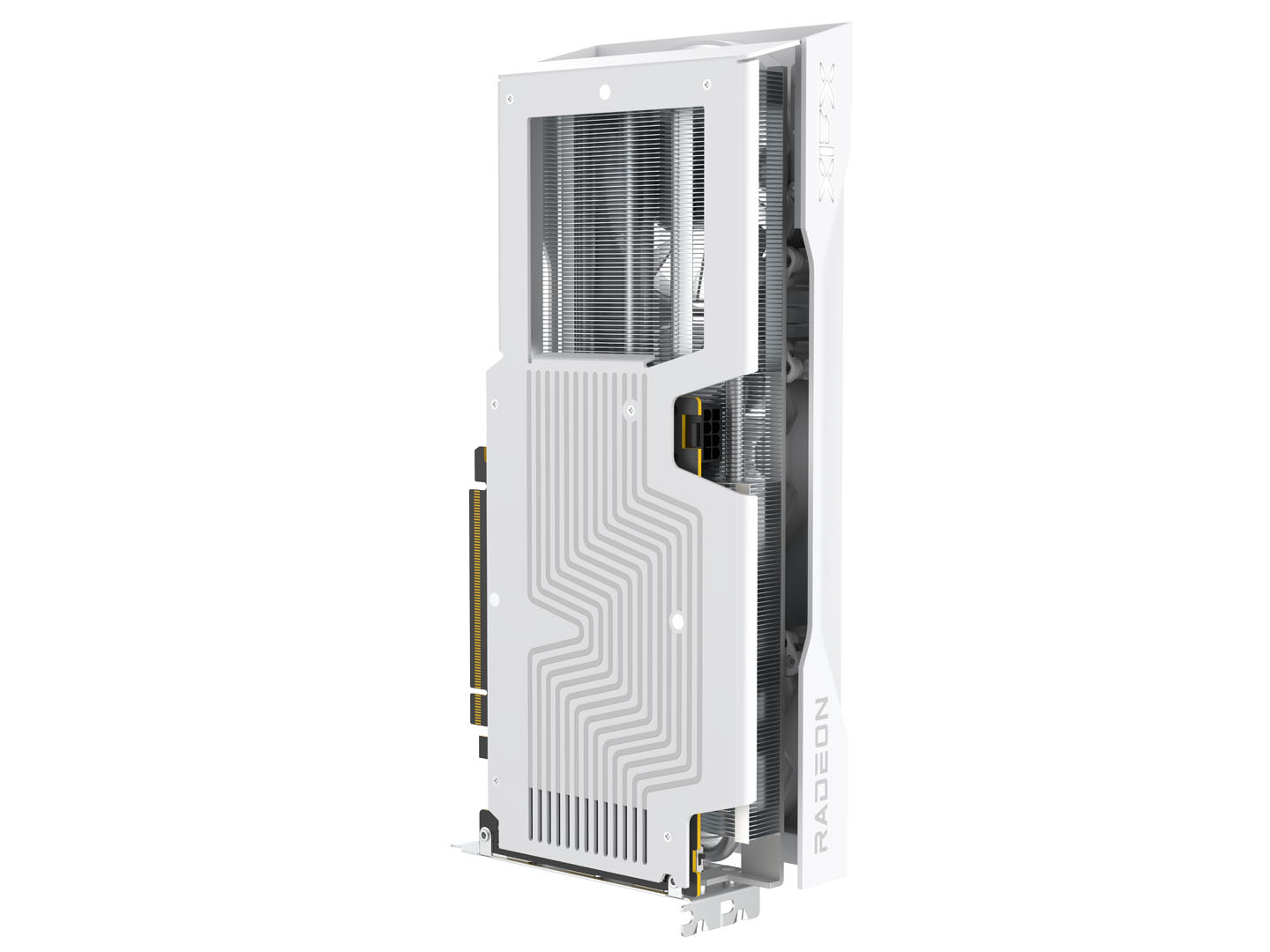

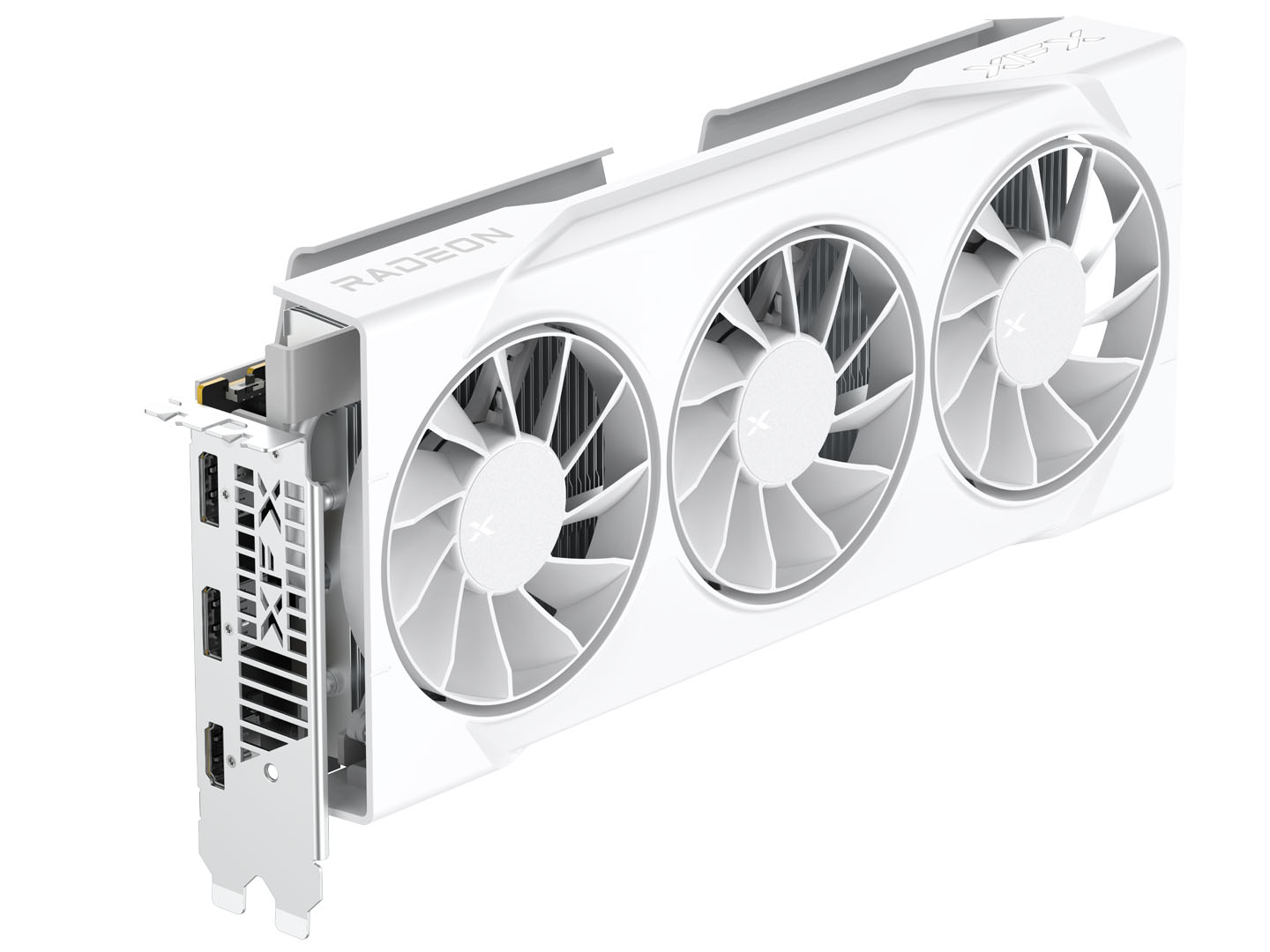

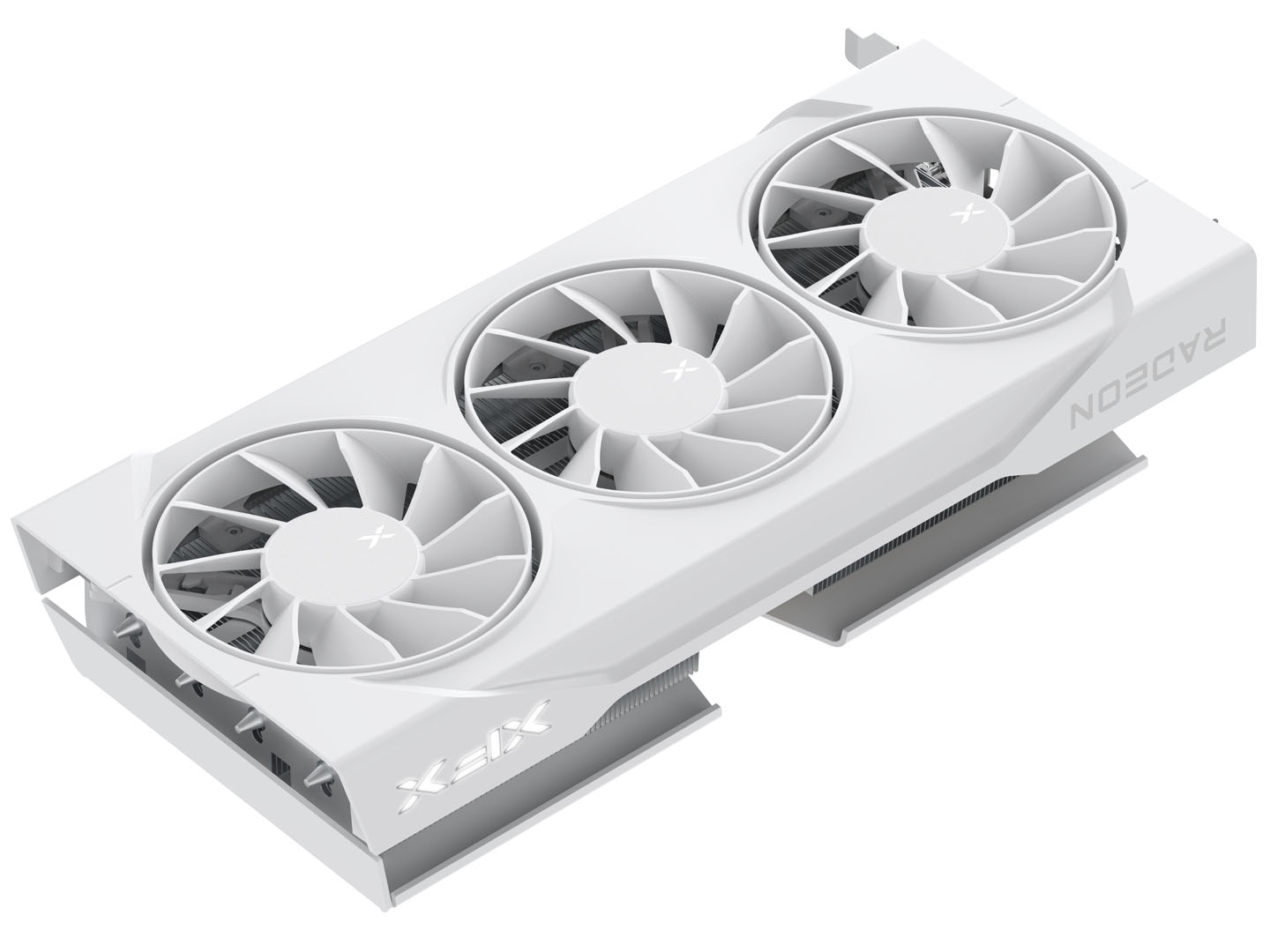

XFX Swift AMD Radeon™ RX 9060XT OC White Triple Fan Gaming Edition with 16GB
Swift Classは、クリーンでエレガントなデザインの中に、現代のエアロダイナミクス思想を体現しています。これは、ただ一つの目的──エアフローを最大化し、冷却性能とパフォーマンスを向上させるために考え抜かれた設計です。XFXのエントリーラインとして、無駄を削ぎ落とした、驚異的なゲーミング性能を提供します。
世代を重ねるごとに、私たちはデザインの簡素化と熱性能の向上を追求しています。ニッケルめっきを施した銅製コールドプレート、高性能ファン、そして6 mm径のヒートパイプ。これらすべてが連携し、優れた冷却性能と放熱性を実現します。
最新のAMD RDNA™ 4アーキテクチャにより、高速化されたレイトレーシングとAIアクセラレーションで次世代のパフォーマンスと電力効率を体験してください。
次世代のレイトレーシングがもたらす、まるで現実のような映像に没入。AMD FidelityFX™ Super Resolution 4の機械学習アップスケーリングがパフォーマンスをさらに高め、強化されたメディアエンジンがストリーミングを鮮明にします。
AMD Radeon™ RX 9060 XTで次世代の1080p・1440pゲーミングを体験。RDNA™ 4とFSR 4、AMD HYPR-RXに対応し、極めてスムーズで応答性の高いゲームプレイを実現します。
最大16 GB VRAM、PCI Express® Gen 5、AMD Smart Access Memory™を搭載。AMD Ryzen™ 9000シリーズと組み合わせ、AM5プラットフォームのポテンシャルを最大化します。DisplayPort™ 2.1aとHDMI® 2.1b対応のRadiance Display™ Engineで次世代ディスプレイもフル活用。
AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors' graphics cards. See AMD FidelityFX Super Resolution for additional information. GD-187b.
AMD HYPR-RX works on the AMD Radeon™ RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software to interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.
AMD Smart Access Memory technology is compatible with AMD Radeon RX 5000 Series GPUs or later, Ryzen 3000 Series CPUs or later (excluding Ryzen 5 3400G and Ryzen 3 3200G CPUs), AMD desktop kits (4800S Series and later), and an AMD 500 Series motherboard or later with the latest BIOS update available at the vendor website. OEM support is required. For additional information see AMD Smart Access Memory. GD-178.1
All Rights Reserved.© 2025 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.
製品仕様
メーカー情報 | |
---|---|
メーカー | XFX |
モデル番号 | RX-96TS316W7シリーズ |
製品名 | AMD Radeon™ RX 9060 XT |
製品説明 | XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 2×DP, AMD RDNA™ 4搭載 |
製品概要 | XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition 16GB |
発売日 | 2025年6月 |
基本スペック | |
バスタイプ | PCI-E 5.0 |
ベースクロック | 最大 1900 MHz |
ゲームクロック | 最大 2780 MHz |
ブーストクロック | 最大 3320 MHz |
ストリームプロセッサ | 2048 |
コンピュートユニット | 32 |
メモリバス | 128 bit |
メモリクロック | 20 Gbps |
メモリサイズ | 16 GB |
メモリ帯域幅 | 最大 340 GB/s |
実効メモリ帯域幅 | – |
メモリタイプ | GDDR6 |
カードサイズ | 2.7 スロット |
冷却ソリューション | 3連ファン |
出力端子 | |
DisplayPort 2.1 | 2ポート |
HDMI™ 2.1 | 1ポート |
HDCP | 対応 |
必要システム | |
外部電源 | 8ピン PCI-E 補助電源コネクタ ×1 |
推奨電源ユニット容量 | 450 W |
認証 | |
RoHS | 適合 |
パッケージ内容 | |
クイックインストールガイド | ×1 |
寸法・重量(概算) | |
カード寸法 (cm) | 29 × 12.4 × 4.9 |
カード寸法 (inch) | 11.42 × 4.88 × 1.93 |
マスターカートン寸法 (cm) | 51.5 × 44.3 × 40.5 |
マスターカートン寸法 (inch) | 20.28 × 17.44 × 15.94 |
マスターカートン重量 | 15.57 kg / 34.33 lbs |
パッケージ寸法 (cm) | 38.9 × 21.8 × 12.5 |
パッケージ寸法 (inch) | 15.31 × 8.58 × 4.92 |
パッケージ重量 | 1.74 kg / 3.84 lbs |
製品重量 | 1.05 kg |
梱包入数 | 8個 |
搭載テクノロジー | |
RDNA™ 4 CU | 32基 (RT+AIアクセラレータ) |
AMD Infinity Cache™ | 対応 |
DisplayPort™ 2.1 | 対応 |
AMD Radiance Display™ | 対応 |
AMD Radeon™ Boost | 対応 |
AMD Radeon™ Anti-Lag | 対応 |
メモリ | 16 GB GDDR6 / 128-bit |
PCIe | Express 5.0 |
AMD FidelityFX™ | 各種テクノロジー (FSR 等) |
DirectX® 12 Ultimate | 対応 |
DirectStorage | 対応 |
Vulkan® | 最適化 |
AMD Software | Adrenalin Edition™ 他 |
AMD Noise Suppression | 対応 |
AMD Privacy View | 対応 |
AMD Radeon™ SR | Super Resolution 対応 |
AMD Link | 対応 |
AMD FreeSync™ | 対応 |
主な特徴 | |
HDMI™ 4K | 対応 |
4K H.264 | デコード / エンコード |
H.265/HEVC | デコード / エンコード |
AV1 | デコード / エンコード |
※「ゲームクロック」は一般的なTGPで想定されるGPUクロックです。実際の値はゲームによって異なります。 ※※「ブーストクロック」は高負荷時に達成可能な最大周波数で、熱条件やワークロードにより変動します。 |
